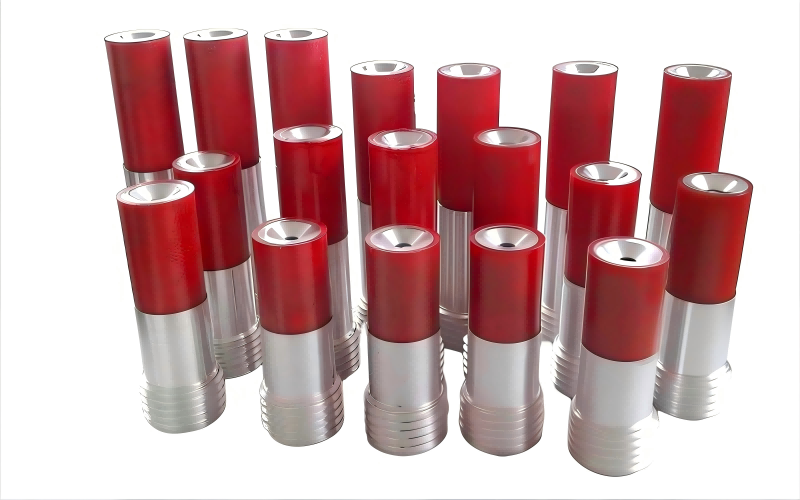

Boron carbide sandblasting nozzle
Boron Carbide Sandblasting Nozzle is a high-performance abrasive blasting nozzle designed for demanding industrial surface preparation applications.
Manufactured from premium boron carbide (B₄C) — one of the hardest engineering ceramics in the world — these nozzles provide exceptional wear resistance, stable airflow, and extremely long service life, even in continuous heavy-duty blasting operations.
Compared with tungsten carbide nozzles or silicon carbide nozzles, boron carbide nozzles offer the longest lifespan and lowest cost per blasting hour, making them the preferred choice for professional sandblasting contractors and industrial users worldwide.
As a professional boron carbide sandblasting nozzle manufacturer and supplier, we provide durable and precision-engineered blasting nozzles for global abrasive blasting industries.
Key Features & Advantages of Boron Carbide Nozzles
• Ultra-high hardness – Mohs hardness ≈ 9.5, second only to diamond and CBN
• Extreme wear resistance – Service life up to 5–10× longer than tungsten carbide nozzles
• Stable blasting performance – Maintains consistent bore diameter for uniform blasting
• Lightweight material – Lower density than tungsten carbide for easier handling
• Lower operating cost – Fewer nozzle replacements and reduced downtime
• Precision-machined bore – Optimized airflow and abrasive acceleration
Material Description – Boron Carbide (B₄C)
Boron carbide is a super-hard ceramic material widely used in industrial applications requiring extreme abrasion resistance and durability.
Due to its low density and outstanding wear resistance, boron carbide is ideal for sandblasting nozzles used with aggressive abrasive media such as aluminum oxide, silicon carbide, garnet, and steel grit.
Material Properties
| Property | Value |
|---|---|
| Material | Boron Carbide (B₄C) |
| Density | ~2.5 g/cm³ |
| Hardness | ~9.5 Mohs |
| Chemical Stability | Excellent |
| Corrosion Resistance | High |
Types of Boron Carbide Sandblasting Nozzles
We offer a complete range of boron carbide blasting nozzles for different sandblasting applications.
Straight Bore Nozzle
Provides precise blasting with relatively low air consumption.
Venturi Nozzle
Accelerates abrasive particles for higher blasting speed and productivity.

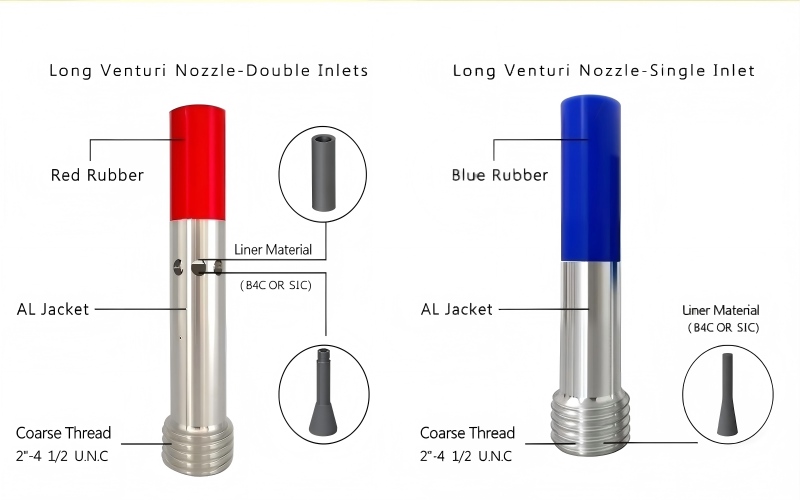

Long Venturi Nozzle
Designed for maximum efficiency when blasting large surfaces.

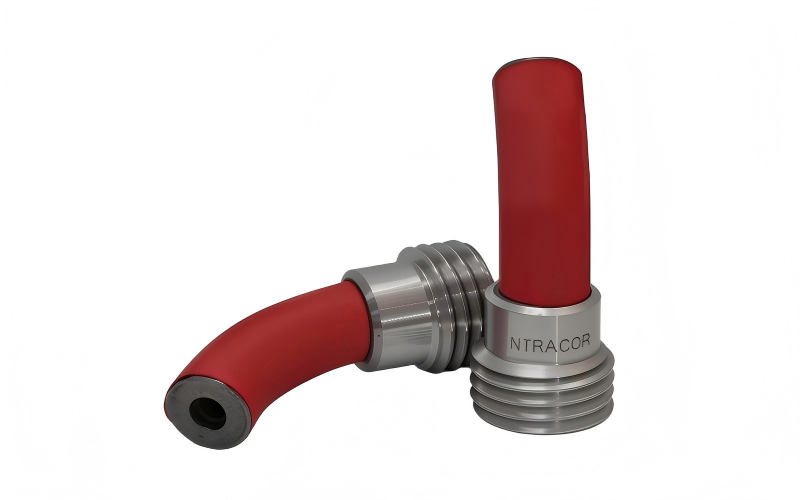

Angle Nozzle
Ideal for cleaning internal pipe surfaces and difficult-to-reach areas.
Internal Pipe / Curved Nozzle
Specialized design for pipe and tube cleaning applications.
Custom designs and drawings are available upon request.
Typical Applications of Boron Carbide Sandblasting Nozzles
Boron carbide blasting nozzles are widely used in many industrial sectors:
Steel structure surface preparation
Shipbuilding and ship repair
Oil and gas pipeline cleaning
Pressure vessels and storage tanks
Foundry casting cleaning
Stone cutting and engraving
Heavy machinery maintenance
Compatible Abrasive Media
Boron carbide nozzles can work with various abrasive blasting materials:
Aluminum Oxide (Brown / White / Black)
Garnet
Silicon Carbide
Steel Grit
Steel Shot
Stainless Steel Shot
Glass Beads
Slag Abrasives
Technical Specifications (Typical)
| Item | Specification |
|---|---|
| Material | Boron Carbide (B₄C) |
| Nozzle Type | Straight / Venturi / Angle / Pipe |
| Bore Diameter | 3 mm – 16 mm (customizable) |
| Nozzle Length | 50 mm – 350 mm or custom |
| Jacket Material | Aluminum / Steel / Rubber / PU |
| Working Pressure | Up to 10 bar (145 psi) |
| Application | Dry or Wet Sandblasting |
Why Choose Longshine Boron Carbide Sandblasting Nozzles
• Strict raw material selection
• Advanced hot-press sintering technology
• Precision machining for consistent bore size
• Stable product quality and long service life
• OEM & ODM manufacturing supported
• Export experience to EU, USA, Middle East and Asia
• Competitive factory pricing with reliable delivery
Packaging & Delivery
Individual protective packaging
Standard export cartons or wooden cases
Custom branding and private labeling available
Fast production and worldwide shipping
FAQ
How long does a boron carbide nozzle last?
Under normal blasting conditions, boron carbide nozzles typically last 5–10 times longer than tungsten carbide nozzles, depending on abrasive type, pressure, and operating environment.
Can boron carbide nozzles be used with steel grit?
Yes. Boron carbide performs extremely well with steel grit, aluminum oxide, silicon carbide, and other aggressive abrasives.
Do you support customized nozzle sizes?
Yes. Bore diameter, nozzle length, and outer jacket materials can all be customized according to customer requirements.
Request a Quote
Looking for long-lasting boron carbide sandblasting nozzles?
Contact us today to receive:
• Technical support
• Product catalogs
• Competitive pricing
• Sample availability
We are ready to support your sandblasting applications worldwide.
