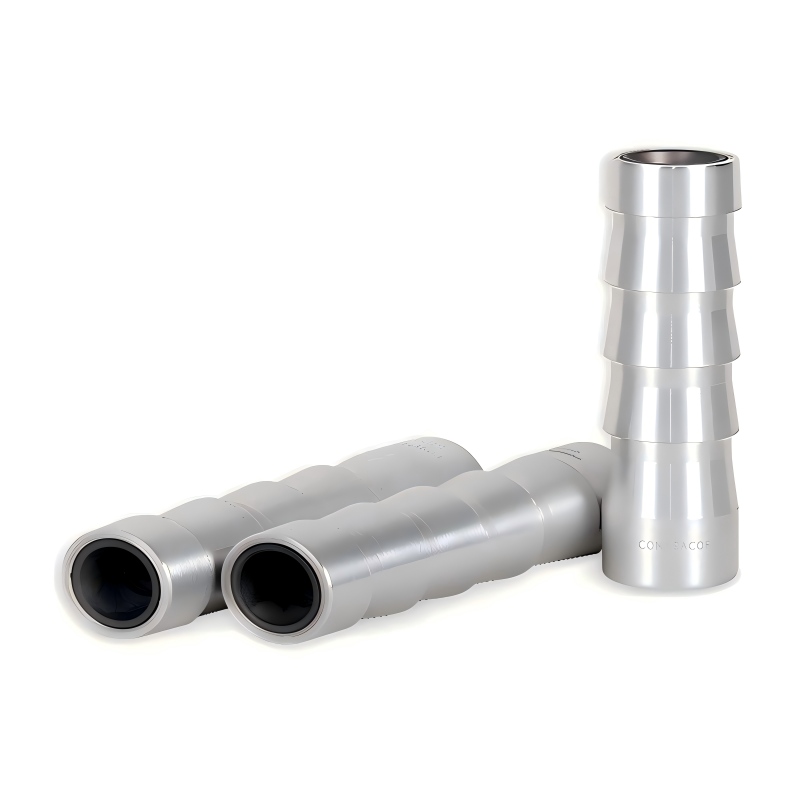

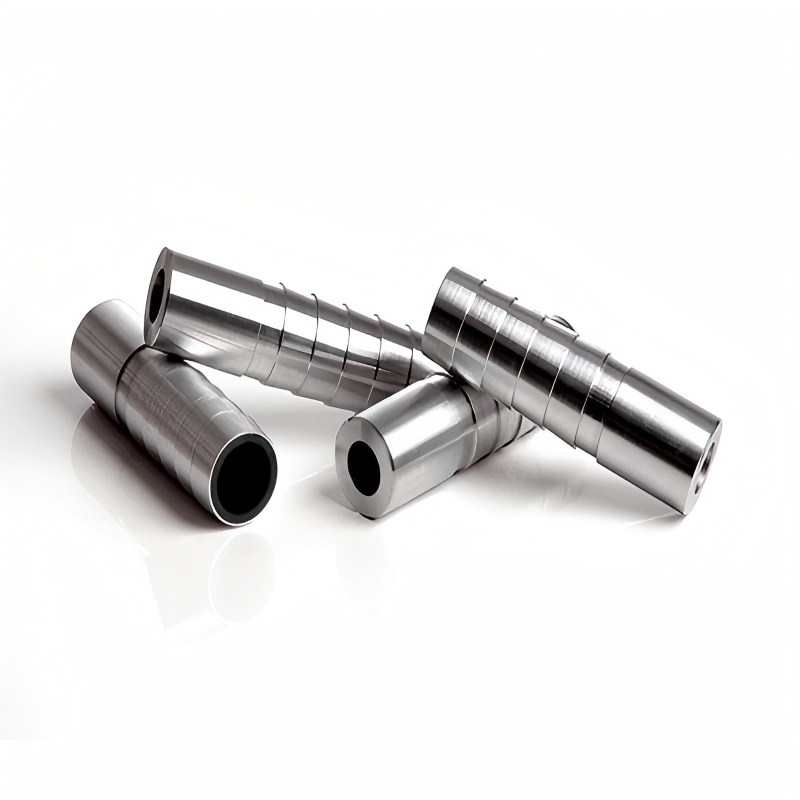

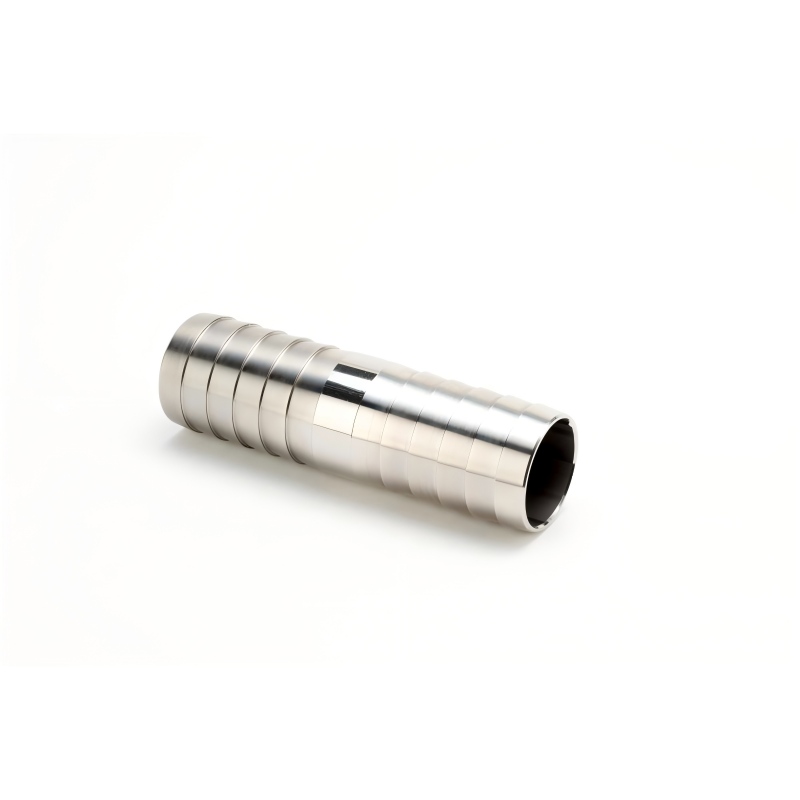

Boron Carbide Stick Up Nozzle for Sandblasting Guns

A Boron Carbide Stick Up Nozzle, also known as a slip-in nozzle, push-in blast nozzle, or plug-in nozzle, is a high-performance abrasive blasting nozzle designed for industrial surface preparation applications.

Unlike conventional threaded blast nozzles, this sandblasting gun nozzle can be directly inserted into a blast gun or blast hose without requiring a nozzle holder. Its compact structure and lightweight design make it an ideal handheld blast nozzle for portable blasting equipment and confined-space operations.

Available in both straight bore blast nozzle and Venturi configurations, stick up nozzles provide excellent wear resistance, high blasting efficiency, and long service life.

What Is a Stick Up Nozzle?

A stick up nozzle is a type of blast gun nozzle featuring a cylindrical body that slides directly into a blast hose or sandblasting gun.

The nozzle is secured by friction and an anti-slip aluminum sleeve, allowing quick installation and replacement. Because of its compact dimensions, it is often used as a small sandblasting nozzle in portable blasting systems.

Common names used by global buyers include:

• Stick Up Nozzle

• Slip-in Nozzle

• Push-in Blast Nozzle

• Plug-in Nozzle

• Blast Hose Nozzle

• Sandblast Gun Nozzle

Key Features

Straight Bore and Venturi Designs

Two internal bore designs are available:

Straight Bore Blast Nozzle

Provides a concentrated abrasive stream with precise impact control, making it suitable for detail cleaning, weld preparation, and localized surface treatment.

Venturi Blast Nozzle

Accelerates airflow and abrasive velocity, delivering up to 40% higher blasting productivity while reducing abrasive consumption.

Advantages of Boron Carbide Blast Nozzles

Compared with tungsten carbide and ceramic nozzles, boron carbide blast nozzles offer significantly longer service life and lower operating costs.

Superior Wear Resistance

• 3–5 times longer life than tungsten carbide nozzles

• 20–50 times longer life than steel nozzles

• Excellent resistance to abrasive erosion

Corrosion Resistance

Suitable for:

• Acid environments

• Alkali solutions

• Salt spray exposure

• Chemical processing applications

Lightweight Design

With a density of approximately 2.5 g/cm³, boron carbide nozzles are around 40% lighter than tungsten carbide alternatives, making them ideal handheld blast nozzles for extended operation.

High Precision Blasting

The smooth internal bore minimizes turbulence and pressure loss, ensuring stable abrasive flow and accurate blasting performance.

Standard Sizes

Universal Φ20 mm Series

• Φ20 × 35 × 6 mm

• Φ20 × 45 × 8 mm

• Φ20 × 60 × 10 mm

Compact Small Sandblasting Nozzle Series

• Outer Diameter: Φ15–16 mm

• Length: 35–55 mm

• Bore Size: 2–10 mm

High-Flow Blast Hose Nozzle Series

• Outer Diameter: Φ28 mm

• Length: 75–80 mm

• Bore Size: 10–14 mm

Applications

Surface Preparation and Abrasive Blasting

This abrasive blasting nozzle is widely used in:

• Steel structure fabrication

• Shipyard maintenance

• Container refurbishment

• Foundry cleaning

• Pipeline coating preparation

• Bridge maintenance

Portable Blasting Equipment

Its compact size makes it an excellent portable blasting nozzle for field service and maintenance work.

Automotive Industry

Used for:

• Chassis cleaning

• Rust removal

• Mold cleaning

• Surface strengthening

High-Pressure Water Jet Cutting

The wear-resistant boron carbide liner ensures long service life under demanding waterjet cutting conditions.

Why Choose Our Stick Up Nozzles?

Our boron carbide stick up nozzles combine the convenience of a slip-in nozzle design with the exceptional durability of boron carbide materials.

Whether you are looking for a replacement sandblast gun nozzle, a compact blast hose nozzle, or a high-efficiency abrasive blasting nozzle for industrial surface preparation, our products provide outstanding performance, reduced downtime, and lower operating costs.

FAQ

What is the difference between a stick up nozzle and a threaded blast nozzle?

A stick up nozzle is a slip-in nozzle that installs directly into a blast gun or hose without threads, making replacement faster and easier.

Are boron carbide blast nozzles better than tungsten carbide nozzles?

Yes. Boron carbide blast nozzles typically last 3–5 times longer than tungsten carbide nozzles when used with abrasive media.

What industries use stick up nozzles?

These sandblasting gun nozzles are commonly used in shipyards, steel fabrication, construction equipment manufacturing, foundries, and industrial surface preparation.
